#AWS Internet Gateway Explained: What Really Happens When You Access Your EC2 Public IP?

One of the biggest misconceptions in AWS networking is that the Internet directly talks to your Internet Gateway. It doesn't.

Let's understand the complete journey of a request from your browser to your FastAPI application running on EC2.

#Introduction

Suppose you have deployed a FastAPI application on an EC2 instance.

Your application is running on:

http://54.xx.xx.xx:8000

When you open this URL in your browser, have you ever wondered:

• How does the request reach AWS?
• How does AWS know which VPC it belongs to?
• Where does the Internet Gateway come into play?
• Why doesn't the request go to someone else's Internet Gateway?

After researching AWS networking, I realized the answer is much more interesting than simply saying:

"Internet Gateway connects your VPC to the Internet."

Let's dive deeper.

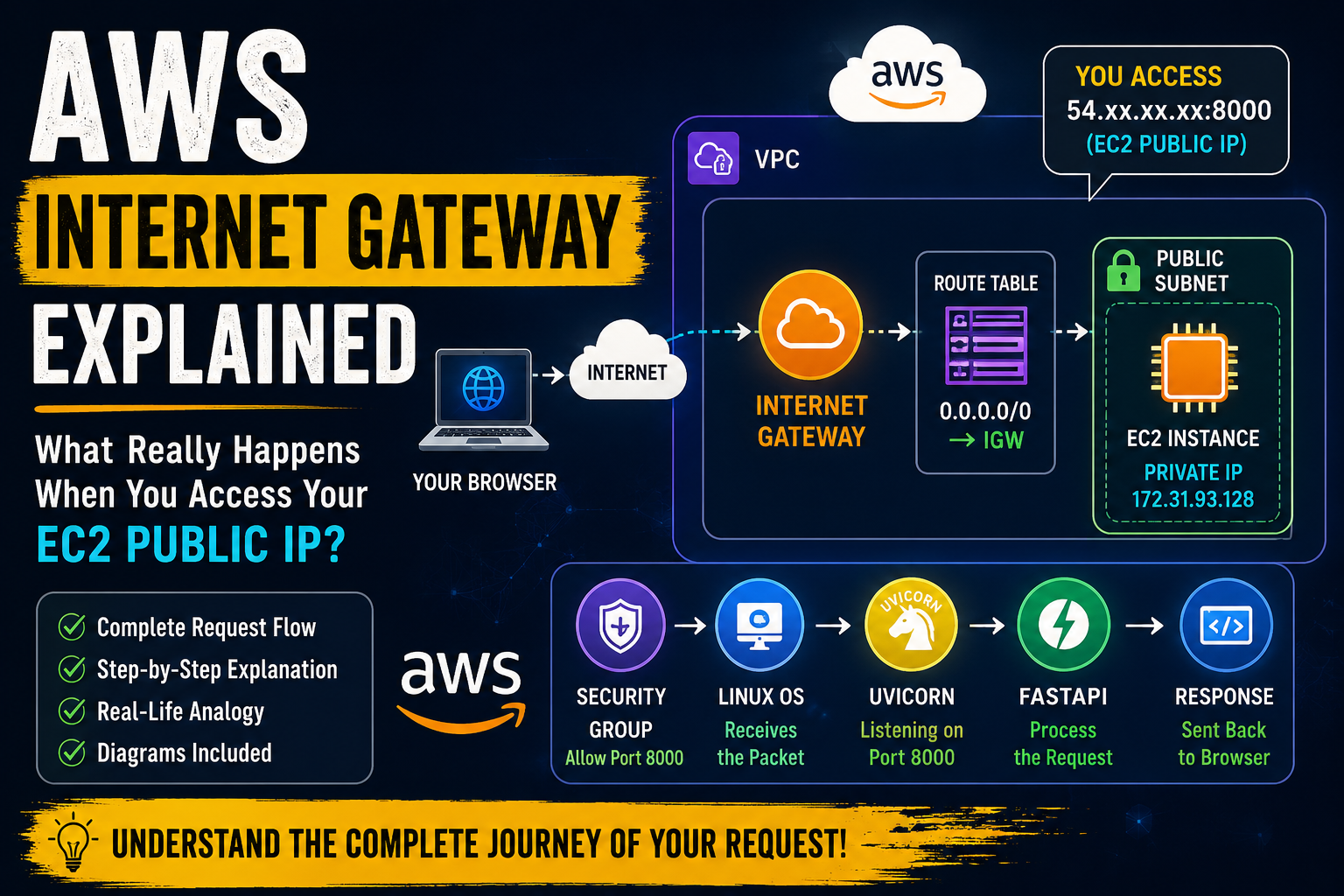

#Our AWS Architecture

                 Internet
                     │
                     │
          AWS Global Network
                     │
          Internet Gateway (IGW)
                     │
              Public Route Table
                     │
               Public Subnet
                     │
          EC2 (Public + Private IP)
                     │
                 FastAPI App

#Step 1 — Your Browser Creates the Request

You type:

http://54.xx.xx.xx:8000

Your browser creates a packet.

Source IP      : Your Laptop Public IP
Destination IP : 54.xx.xx.xx
Destination Port : 8000

Notice something important.

Your browser knows nothing about:

• AWS
• VPC
• Internet Gateway
• EC2

It only knows:

Send this packet to IP address 54.xx.xx.xx.

#Step 2 — The Internet Starts Routing

The packet travels through multiple routers.

Laptop
   │
Home Router
   │
ISP
   │
Internet Routers
   │
???

Every router asks only one question:

Who owns this destination IP?

Routers do not know what an EC2 instance is.

They simply route packets based on IP ownership.

#Step 3 — AWS Owns That Public IP

Public IP addresses are allocated to cloud providers.

For example (illustrative):

AWS      → 54.x.x.x
Azure    → 20.x.x.x
Google   → 35.x.x.x

Since the destination IP belongs to AWS:

Destination IP
54.xx.xx.xx
        │
        ▼
AWS Network

The Internet's job is finished.

From here onward, AWS takes control.

#Step 4 — AWS's Internal Network Takes Over

This is where many people get confused.

Most people imagine:

Internet
      │
      ▼
Internet Gateway

This is not what happens.

Instead:

Internet
      │
      ▼
AWS Global Network

AWS first receives the packet into its own networking infrastructure.

AWS internally knows something like this:

54.xx.xx.xx
      │
      ▼
Region : ap-south-1
      │
      ▼
VPC : vpc-12345
      │
      ▼
Internet Gateway : igw-abc123
      │
      ▼
EC2 : i-123456

This mapping is maintained entirely by AWS.

You never configure it.

#Step 5 — Internet Gateway Comes Into Play

Now AWS has identified:

• Which Region
• Which VPC
• Which EC2

AWS forwards the traffic through the Internet Gateway attached to that VPC.

AWS Global Network
        │
        ▼
Internet Gateway
        │
        ▼
VPC

Notice something.

The Internet Gateway is inside AWS.

It is not sitting somewhere on the public Internet.

It is a logical networking component managed by AWS.

#Step 6 — Route Table Decides Where to Send the Packet

Your VPC may contain multiple subnets.

The route table determines where the packet should go.

Example:

Destination      Target

172.31.0.0/16    Local
0.0.0.0/0        Internet Gateway

The packet is forwarded into the correct subnet.

#Step 7 — Security Group Checks the Traffic

Before reaching your EC2:

AWS checks the Security Group.

Example:

Inbound

TCP
Port 8000

Source

0.0.0.0/0

If allowed:

Packet Accepted

Otherwise:

Packet Dropped

#Step 8 — EC2 Receives the Packet

Your EC2 actually communicates using its private IP.

Example:

Public IP

54.xx.xx.xx

↓

Private IP

172.31.93.128

AWS performs the mapping internally.

Linux receives the packet.

#Step 9 — Uvicorn Receives the Request

Suppose Uvicorn is running:

uvicorn main:app --host 0.0.0.0 --port 8000

Linux checks:

Who is listening on port 8000?

It finds:

Uvicorn

Then:

Uvicorn
      │
      ▼
FastAPI
      │
      ▼
@app.get("/")

Your API generates a response.

#Step 10 — Response Travels Back

The response follows the reverse path.

FastAPI
    │
Uvicorn
    │
Linux
    │
Internet Gateway
    │
AWS Network
    │
Internet
    │
Browser

#Where Exactly Does the Internet Gateway Fit?

Many beginners think:

Internet
     │
Internet Gateway

Actually:

Internet
      │
AWS Global Network
      │
Internet Gateway
      │
VPC
      │
EC2

The Internet Gateway acts as the bridge between AWS's networking infrastructure and your VPC.

It does not receive traffic directly from the Internet before AWS processes it.

#Why Doesn't the Request Go to Another Customer's Internet Gateway?

Imagine AWS has millions of customers.

Customer A
    │
IGW-A

Customer B
    │
IGW-B

Customer C
    │
IGW-C

When AWS receives:

Destination IP

54.xx.xx.xx

AWS already knows:

This Public IP

↓

belongs to

↓

EC2

↓

VPC

↓

IGW-B

The request can only enter the Internet Gateway associated with the VPC that owns that public IP.

#Real-Life Analogy

Think of AWS like a huge airport.

Airport = AWS Global Network

Terminal = VPC

Entrance = Internet Gateway

Gate = EC2

Passenger = Network Packet

Passengers first arrive at the airport.

Airport systems determine:

• Which airline
• Which terminal
• Which gate

Similarly:

The Internet first sends the packet to AWS.

AWS determines:

• Which Region
• Which VPC
• Which Internet Gateway
• Which EC2

Only then is the packet delivered.

#Complete Request Flow

Browser
    │
    ▼
Internet
    │
    ▼
AWS Global Network
    │
    ▼
Public IP Lookup
    │
    ▼
Internet Gateway
    │
    ▼
Route Table
    │
    ▼
Public Subnet
    │
    ▼
Security Group
    │
    ▼
EC2 Private IP
    │
    ▼
Linux
    │
    ▼
Uvicorn
    │
    ▼
FastAPI

#Key Takeaways

• An Internet Gateway (IGW) is a logical AWS-managed gateway attached to a VPC.
• The public Internet does not know about your Internet Gateway.
• Internet routers send packets only to the public IP's owner (AWS).
• AWS's internal network looks up the destination public IP and determines the correct Region, VPC, and Internet Gateway.
• The Internet Gateway provides the bridge between AWS's network and your VPC.
• Route Tables, Security Groups, and the EC2's public IP work together with the Internet Gateway to allow traffic to reach your application.
